KRIOS™ MINI

This documentation contains a technical guide and information on the operation of KRIOS™ MINI electronic speed controllers.

🧩 Pinout💾 Firmware🔧 Mounting & Cooling📦 Resources

Specifications​

Voltage​

  • Input Voltage Range: 12.6 - 25.2 V (3S-6S, 6S for optimal performance)
  • Minimum Input Voltage: 12 V
  • Maximum Input Voltage: 30 V

Current​

PM0A92-40-X​

  • Continuous Current: 40 A
  • Burst Current: 50 A

PM0A92-30-X​

  • Continuous Current: 30 A
  • Burst Current: 40 A

Input Protocols​

  • PWM(50Hz), Dshot, Bi-Directional Dshot, Oneshot, Multishot, Proshot

Dimensions​

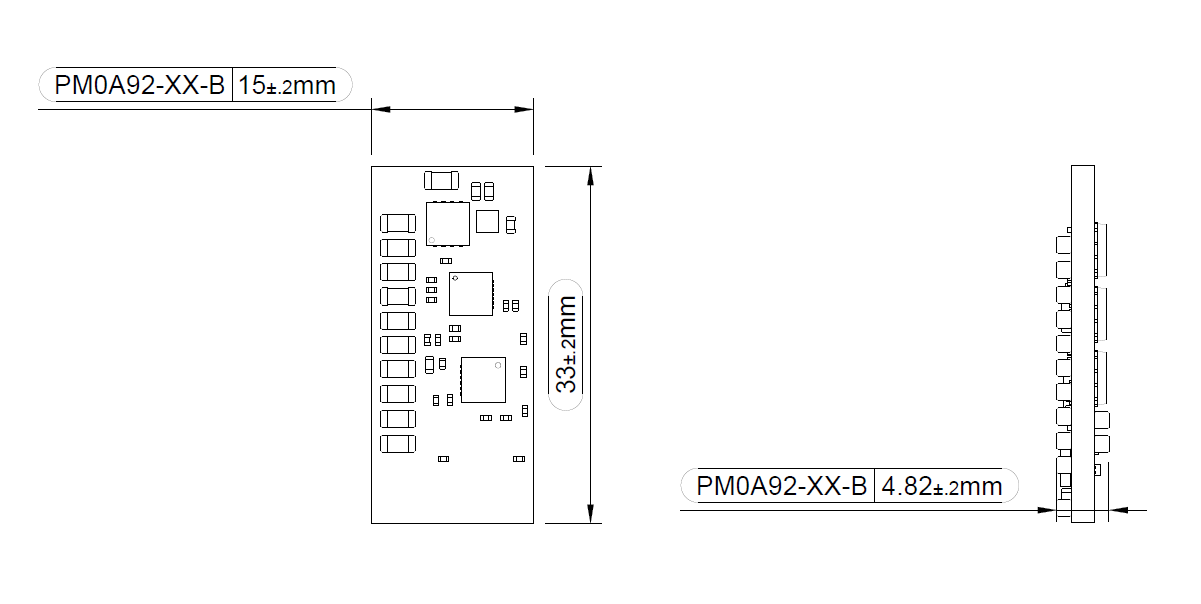

KRIOS MINI Dimensions

  • Size (-B variant): 15 mm x 33 mm x 4.82 mm
  • Size (-Z variant): 15 mm x 33 mm x 7 mm

Weight​

  • Weight (-B variant): 4.17 g
  • Weight (-Z variant): 14.82 g
