This documentation contains a technical guide and information on the operation of AJAX electronic speed controllers.

🧩 Pinout💾 Firmware🔧 Mounting & Cooling📦 Resources

Specifications​

Voltage​

  • Input Voltage Range: 12.6 - 33.6 V (3S-8S, 6S or 8S for optimal performance)
  • Minimum Input Voltage: 12 V
  • Maximum Input Voltage: 36 V

Current​

SC1D08-80-B​

  • Continuous Current: 80 A
  • Burst Current: 90 A

Input Protocols​

  • PWM(50Hz), Dshot, Bi-Directional Dshot, Oneshot, Multishot, Proshot

Dimensions​

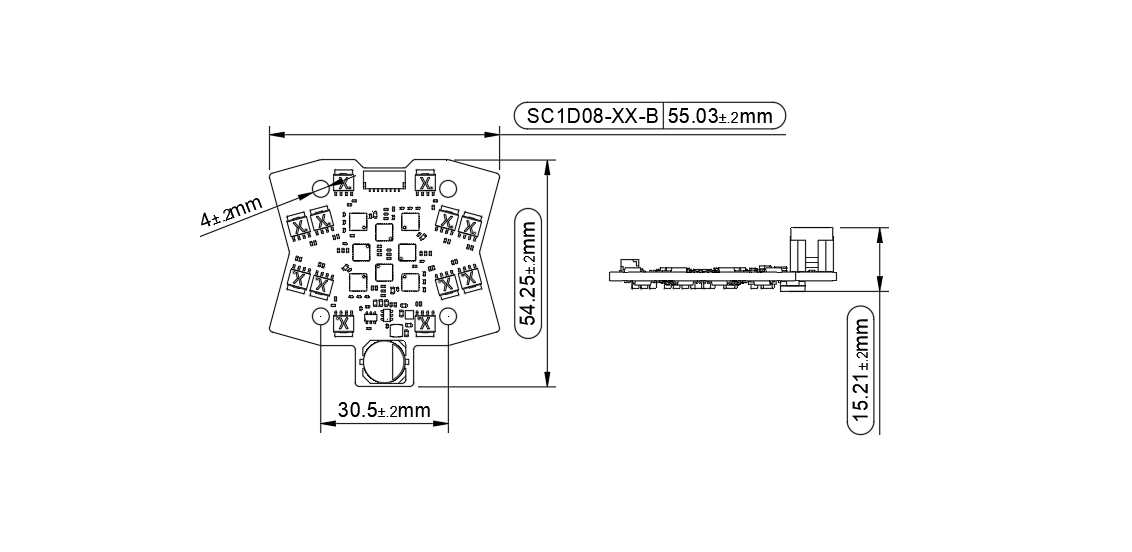

AJAX Dimensions

  • Size: 55.03 mm x 54.35 mm x 15.21 mm

Weight​

  • Weight: 20.69 g
